Whether you’re crafting an intimate slip off your cottage for quiet morning coffee, a playful swim platform for weekend cannonballs, or a winding path that lets you cast where the big ones hide, the Infinity RS4 was designed for life by the water.
Perfect for:
Moderate to shallow depths (3-7 ft), stable to lightly fluctuating water levels
Families and cottagers who want to start small and expand easily over time
Gentle to moderate wave environments where a stable, elegant dock matters
Owners who value lightweight sections for seasonal install & compact off-season storage
Seamlessly adjust as your needs change—dock furniture one year, paddleboard racks the next, all without drilling or hiring a contractor.
The Infinity RS4 isn’t just a dock — it’s a system crafted for how you actually live at the lake. From shaping spaces that bring people together to choosing materials that stay beautiful year after year, every detail is engineered to make your waterfront more enjoyable and less work.
| Unlimited Configurability Create winding walkways, curved fishing decks, or sun platforms. Exclusive 45° and 90° curves let your dock follow the shoreline. |
| Engineered for Lake Life Dime-welded aluminum frames, 5-sided adjustable legs, and pass-through foot pads keep your dock steady through summers, storms, and decades of use. |
| Low-Maintenance Luxury Choose from nine decking options—from cool Glacier™ to rich woodgrain aluminum—that resist fading and never need staining. |
| Easiest Install & Storage Quick assembly, drop-in decking, and stackable frames make seasonal setup and takedown nearly effortless. |

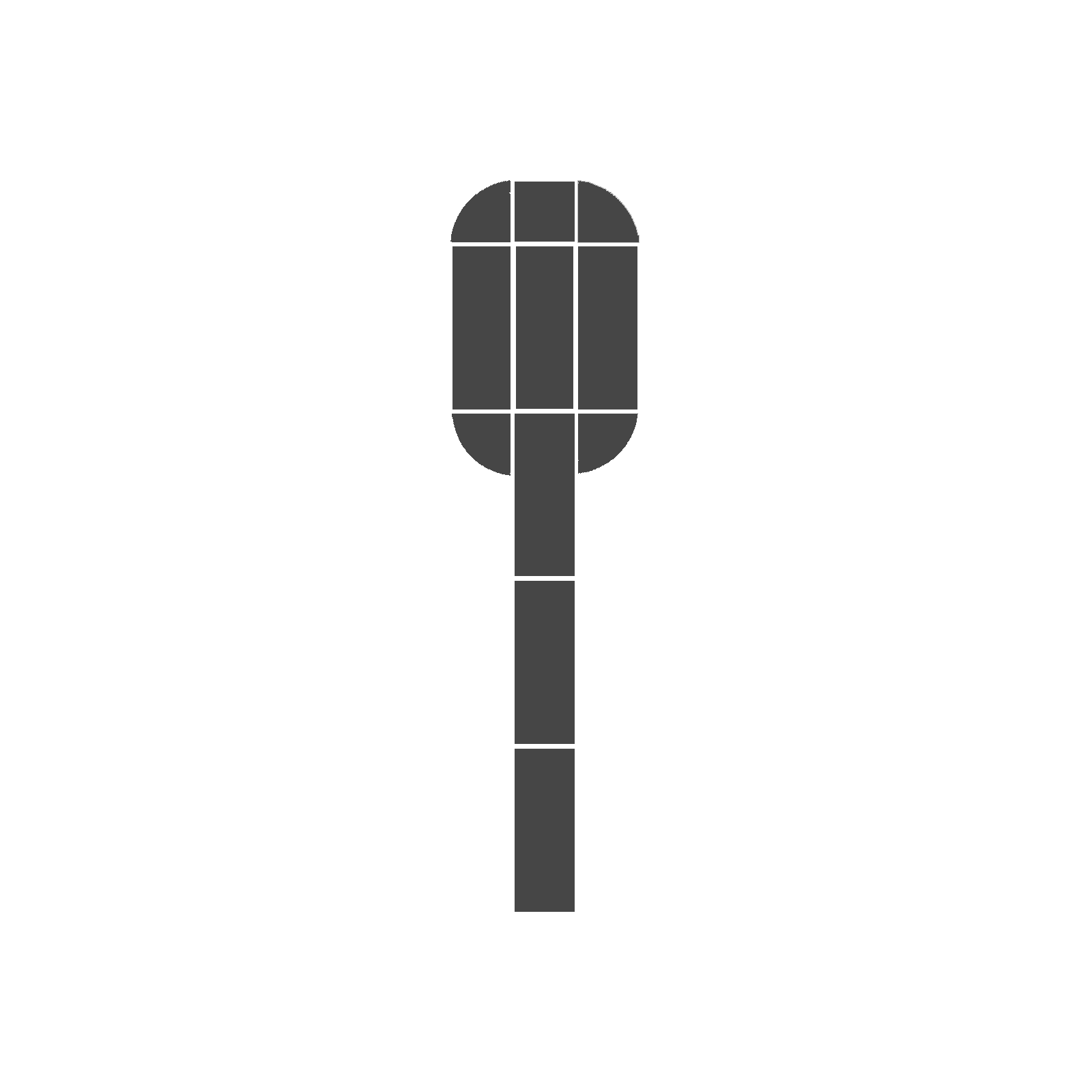

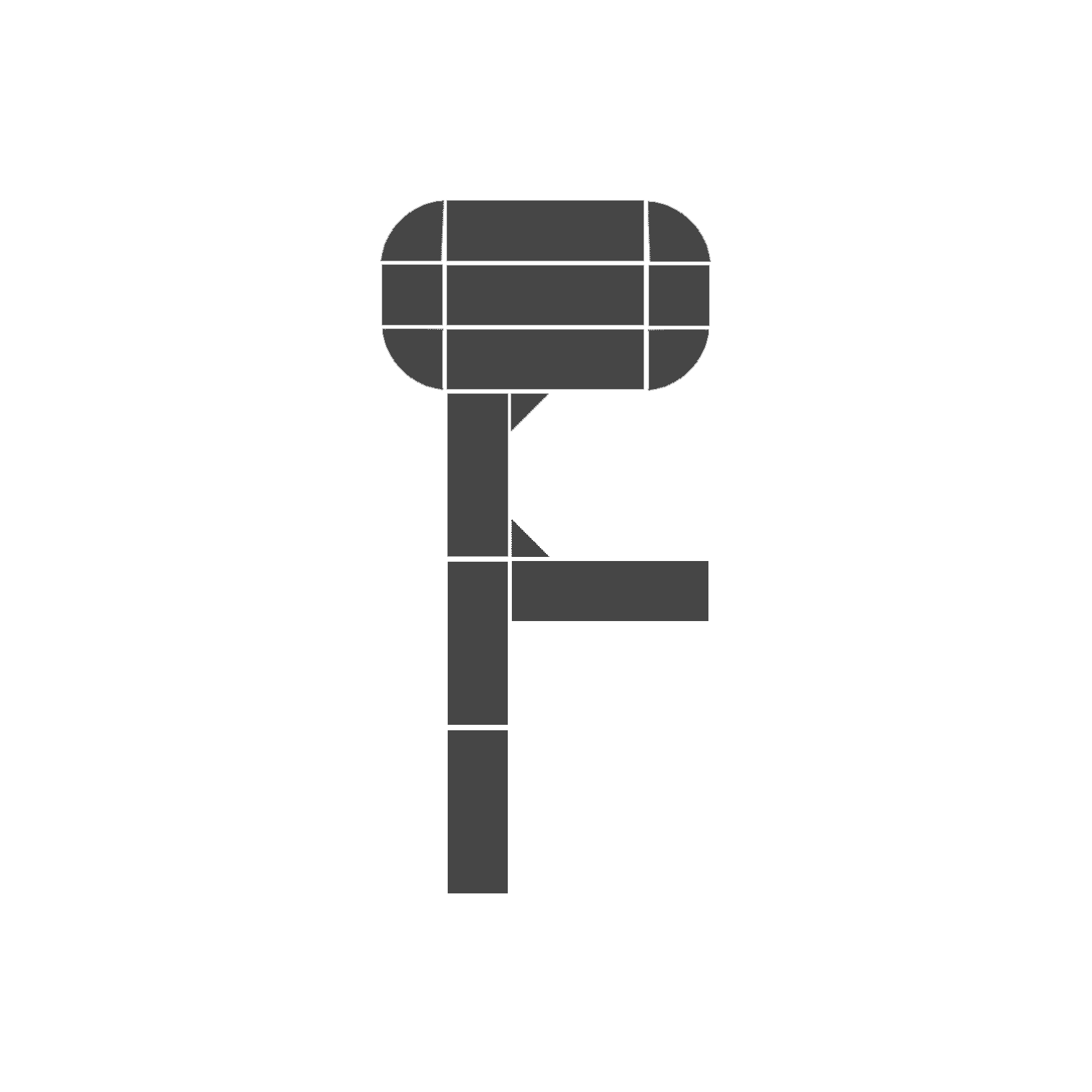

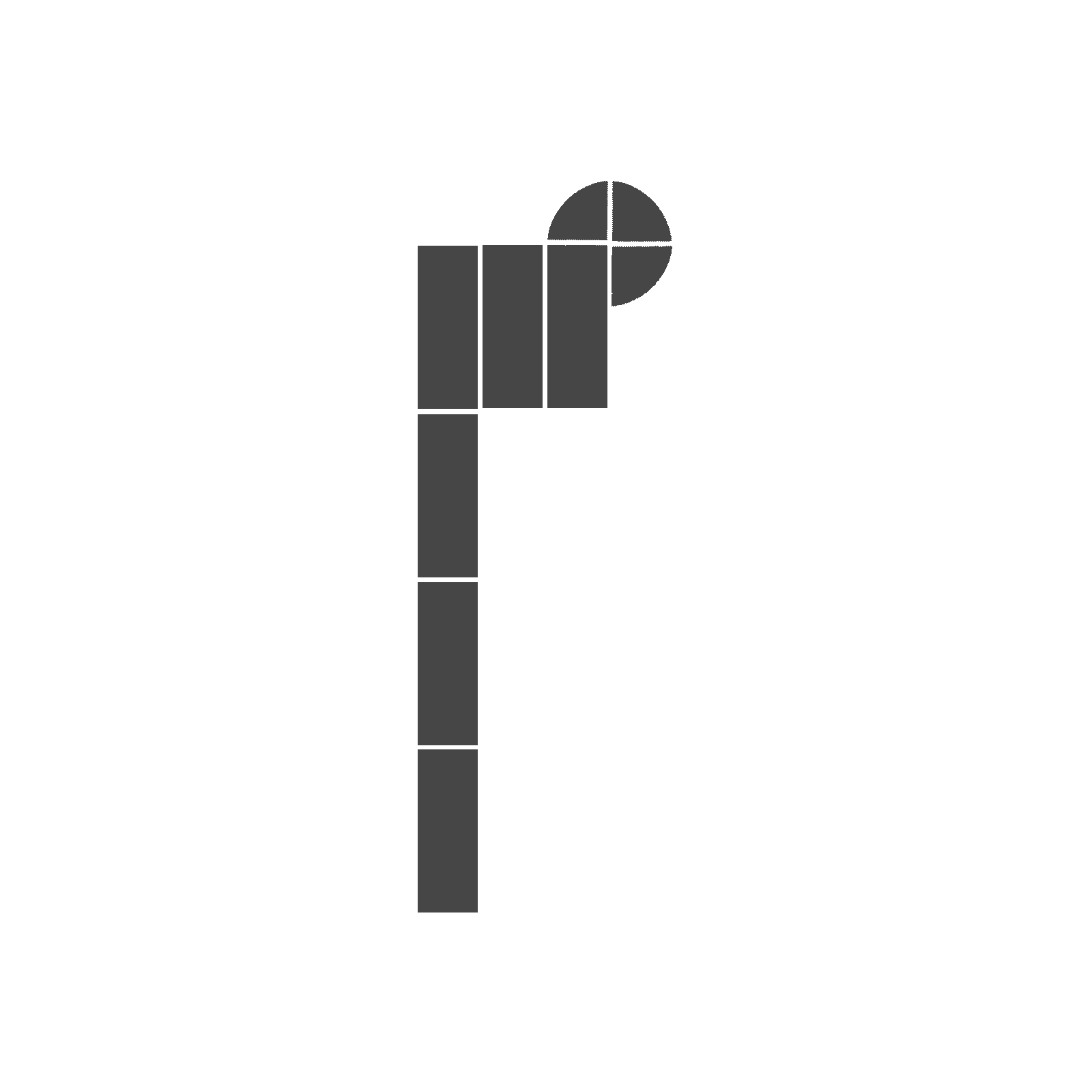

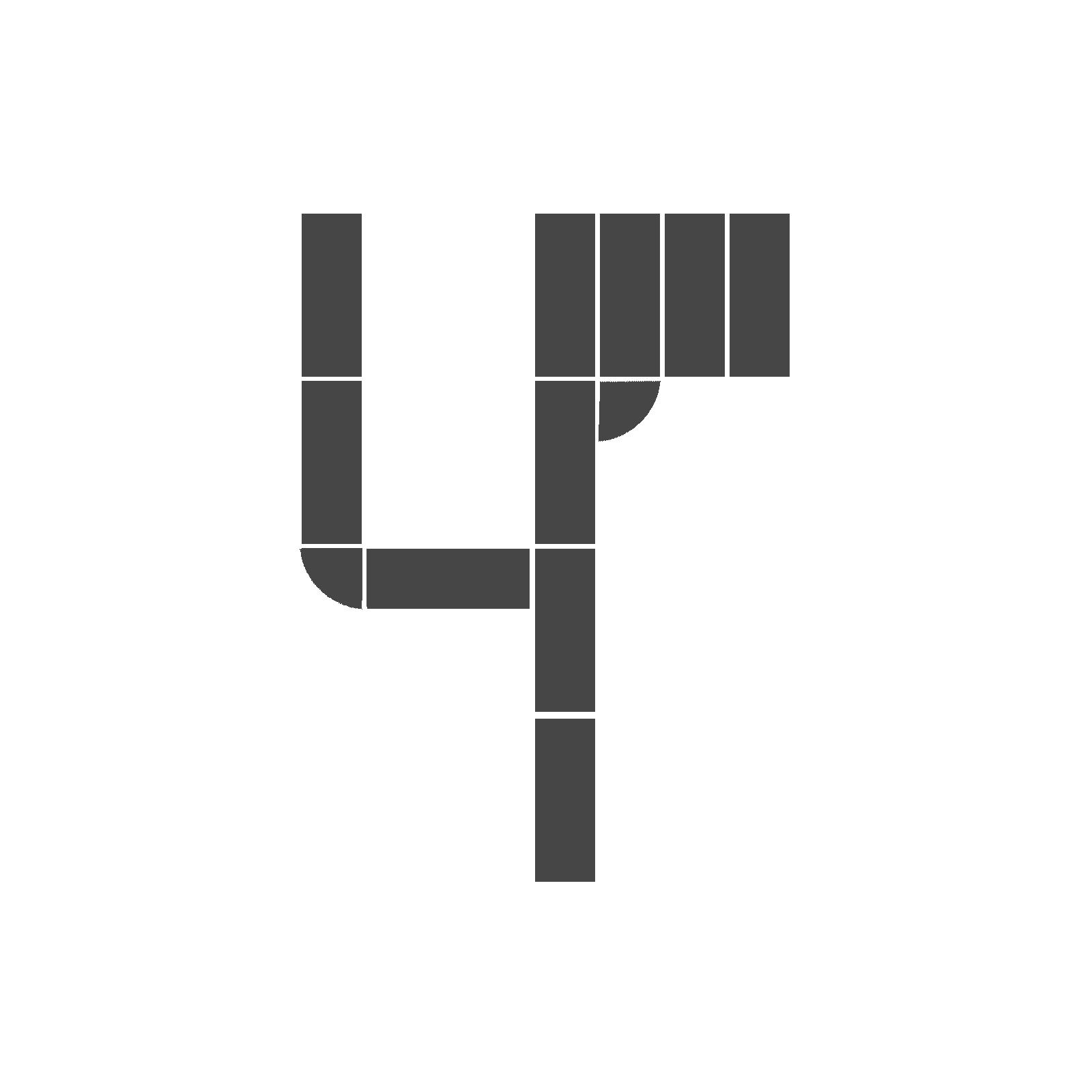

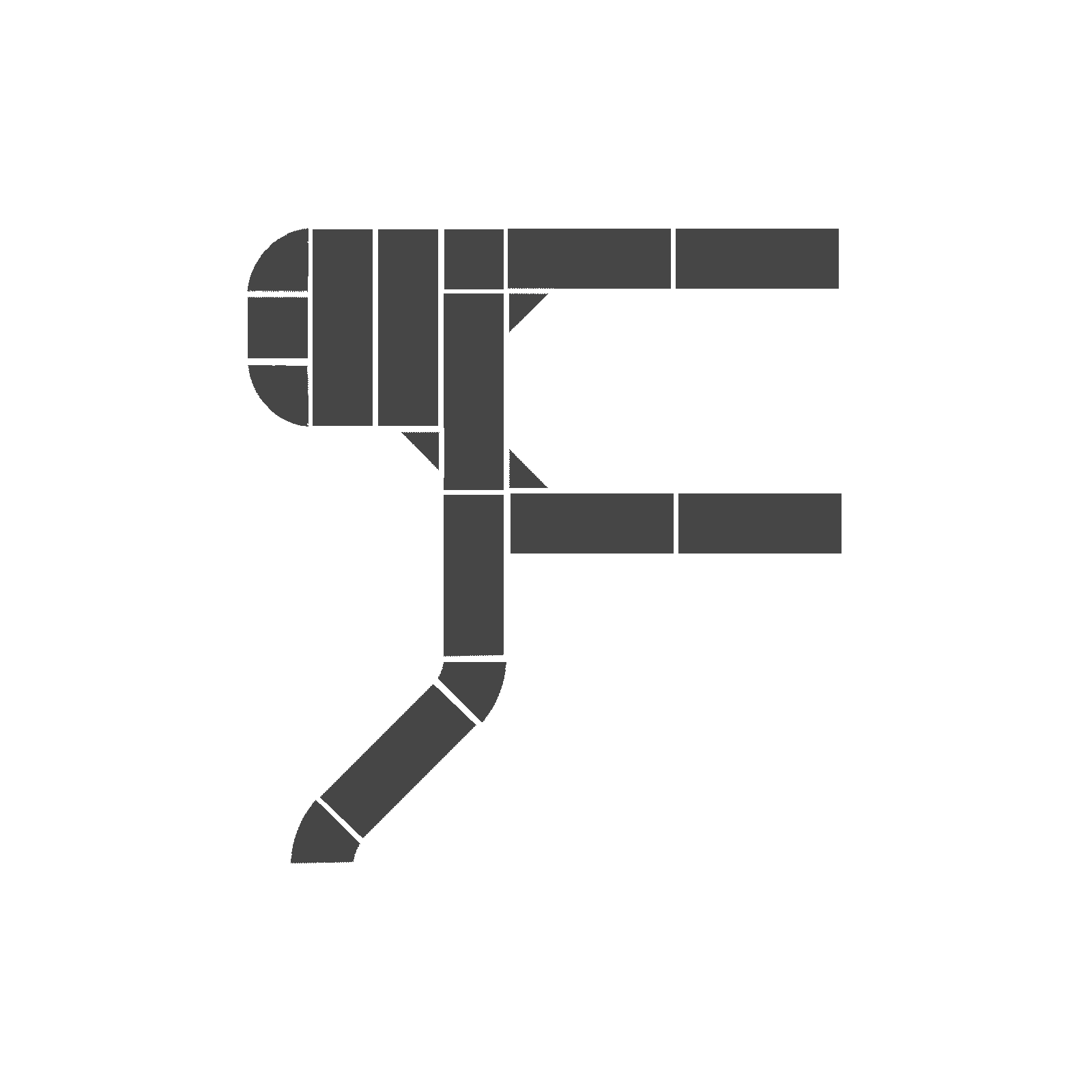

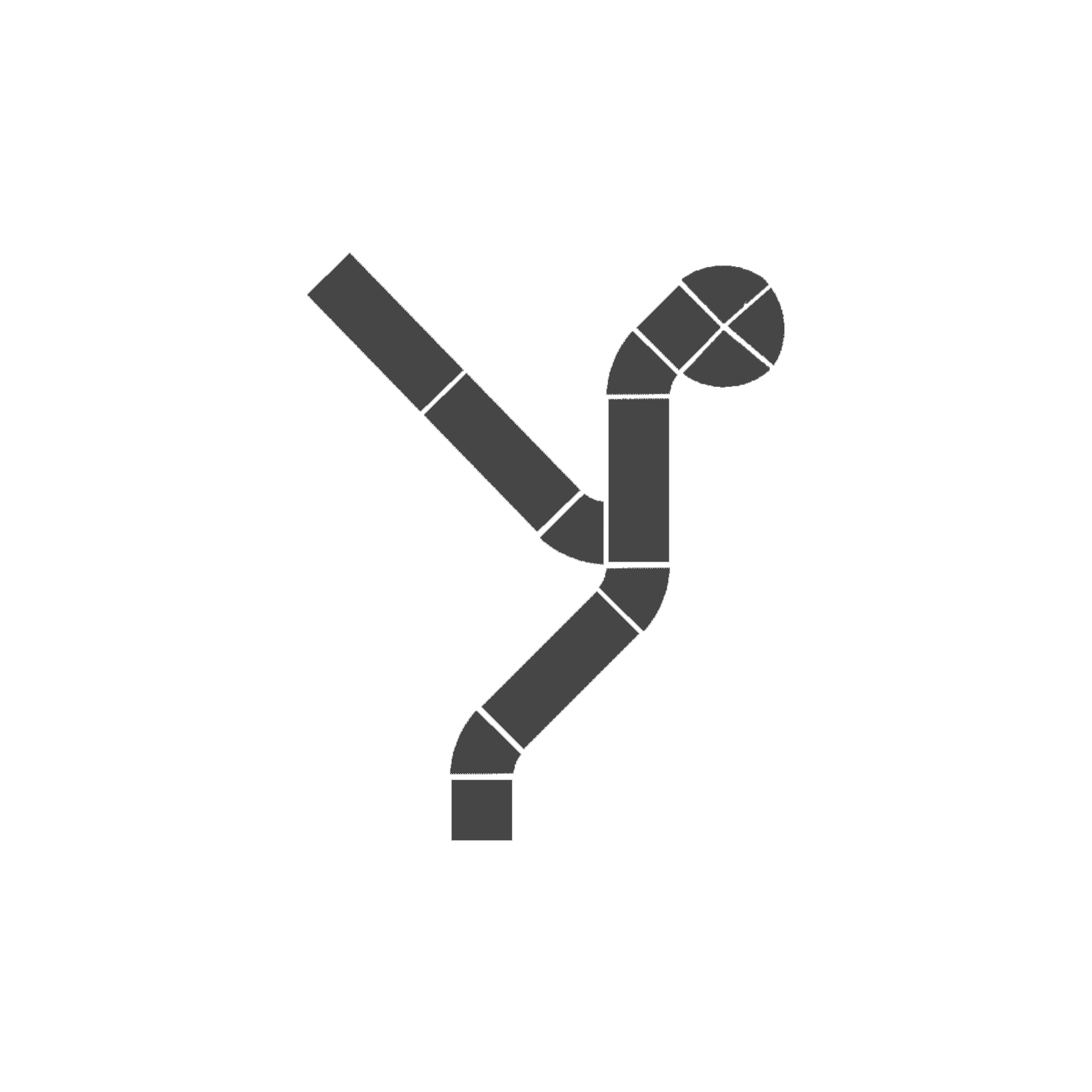

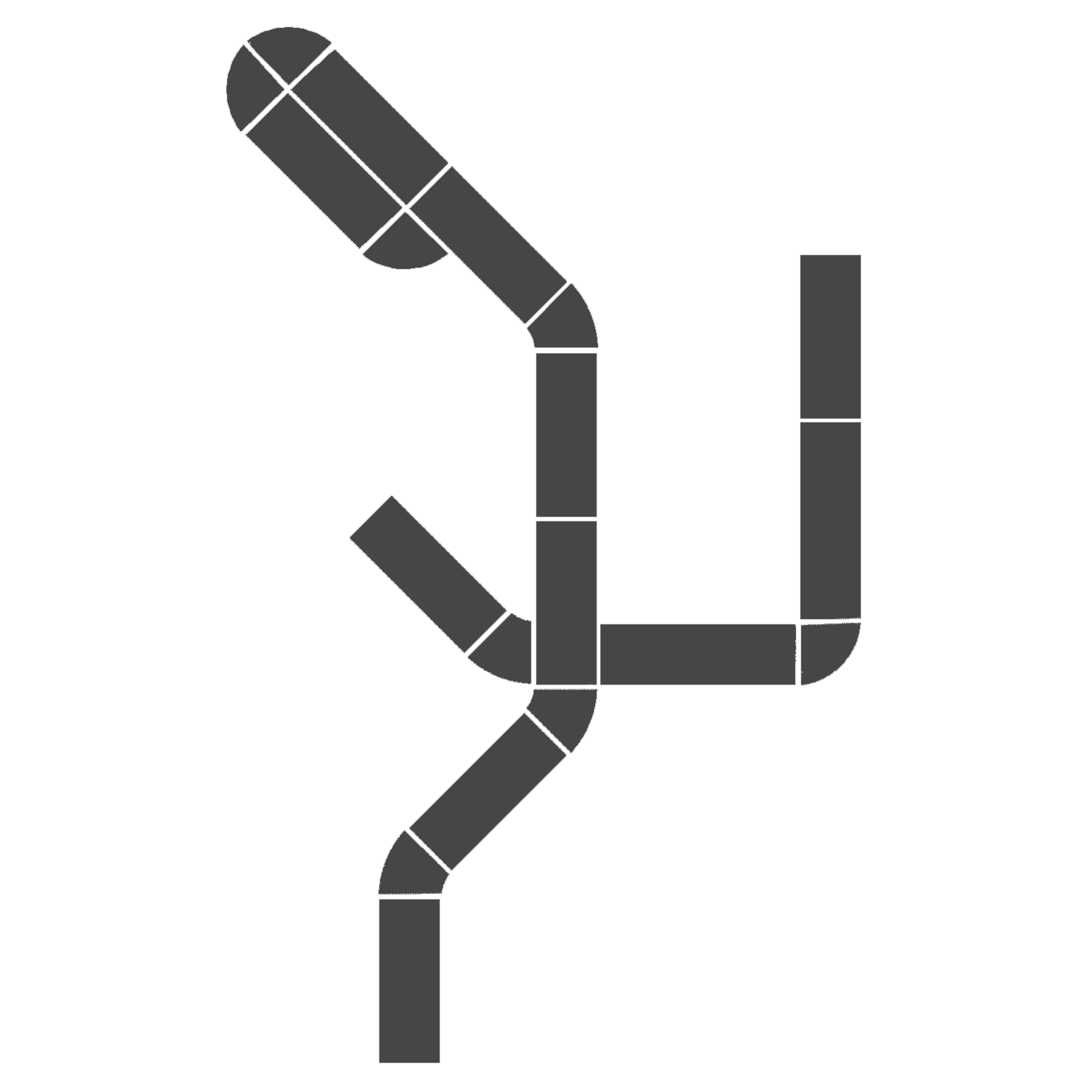

Available in 4' and 6' widths and lengths up to 12', the Infinity RS4 also offers exclusive 45° and 90° curved sections for creative, modular layouts that suit any shoreline.

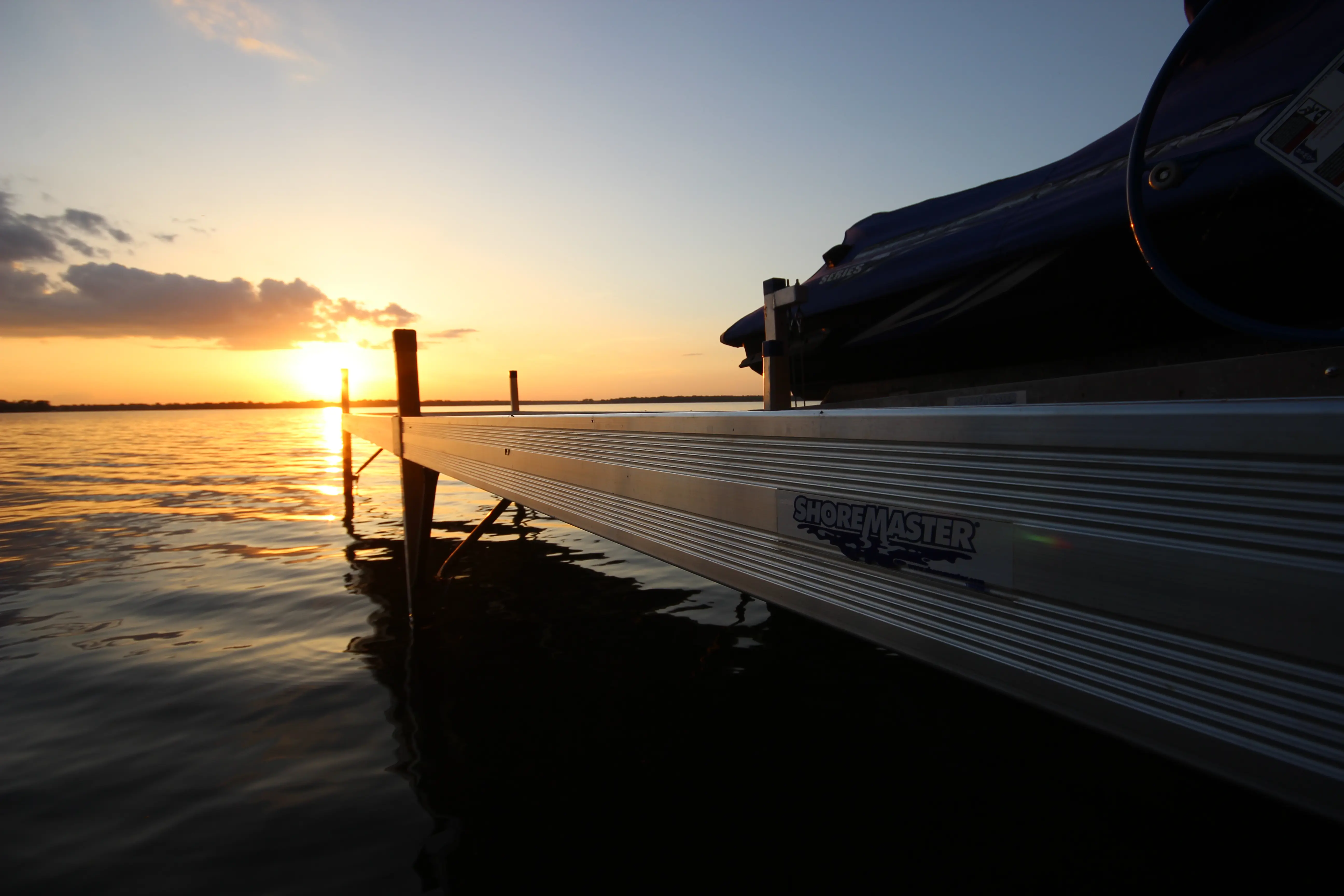

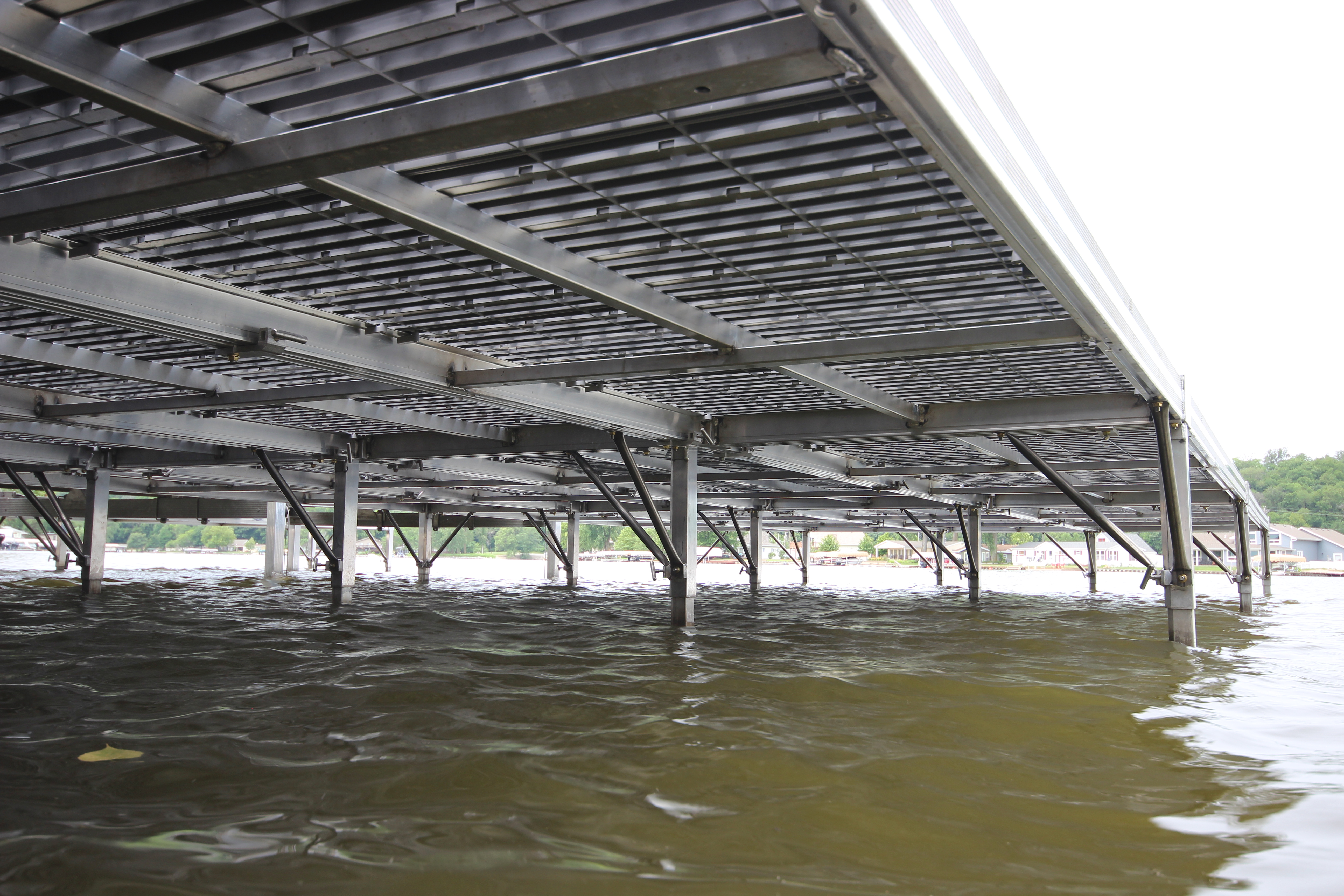

The RS4 features a fully welded, precision-crafted frame built from 4" marine-grade aluminum side rails—delivering unmatched strength, corrosion resistance, and long-term durability in a lightweight design.
Its 5-sided adjustable aluminum legs with pass-through foot pads provide rock-solid stability, even on uneven or soft lake bottoms.
Whether you’re starting small or expanding over time, the RS4’s modular, fully welded frame is made to evolve with your waterfront lifestyle.
Infinity RS4 Dock Sections Available:
Section Size | Frame Weight* |
4' x 4' | 52 lbs |
4' x 10' | 82 lbs |
4' x 12' | 97 lbs |
6' x 8' | 90 lbs |
45 Curve | 33 lbs |
3' Corner | 20 lbs |
90 Curve | 36 lbs |
*Frame section only - not inclusive of decking or dock legs
Lightweight Sections. Effortless Off-Season Storage.
The Infinity RS4 sectional dock system is designed for smooth seasonal transitions. Each lightweight dock section can be removed without heavy equipment, and our drop-in decking panels lift out individually for easy handling. Frames are stackable, so your dock takes up minimal space along the shoreline or in storage during the winter months.
Why It Matters for Sectional Dock Owners:
Lightweight Handling – Marine-grade aluminum frames keep each section easy to move by hand.
Quick Breakdown – QuickConnect™ assembly means fewer bolts and faster disassembly.
Compact Storage – Stackable sectional dock frames and decking store neatly in limited space.
Year-Round Protection – Keep your dock out of the ice and snow to extend its lifespan.
Whether you’re pulling out a few curved sections or the entire dock system, the RS4 makes seasonal removal and storage faster and simpler — so you can spend more time enjoying the water and less time wrestling with heavy, awkward parts.
Feature | Infinity RS4 by ShoreMaster | Typical Dock Systems |
Frame Construction | Precision dime-welded marine-grade aluminum for decades of strength | Bolted or spot-welded aluminum/steel; can flex, loosen, or corrode |
Dock Style | Modular sectional with 45° & 90° curves | Mostly straight sections; few or no curves |
Side Height / Strength | 4″ continuous rails + internal stringers for rigidity | 2–3″ profiles with fewer supports; prone to flexing |
Section Attachments | QuickConnect for endless layouts & easy re-config | Bolts or clamps; limited changes; may loosen seasonally |
Leg System | 5-sided adjustable legs with pass-through foot pads for stability | Standard round/square legs; less stable on uneven beds |
Leg Pocket Height | 18″ deep pockets for secure adjustment | Shallow pockets or fixed-height legs |
Screw Legs Available | Yes, for soft lake beds | Rarely offered or special-order |
Section Sizes & Flexibility | 4′, 6′, 12′ lengths + exclusive curves | Standard rectangles only (4′×8′, 4′×10′) |
Accessory Compatibility | Tool-free InfinityTrack install & relocation | Requires drilling or fixed bolts; harder to move |
Decking Options | 9 premium low-maintenance choices | 2–3 basic decking types |
More strength & stability. The RS4’s dime-welded marine aluminum & deeper side profile outperform many lighter frames that can twist or rattle with boat wakes.
More layout freedom. Curves + modular InfinityTrack let you build a dock that matches your shoreline & lifestyle, not just a series of rectangles.
More future-proof. Want to add a kayak rack, extra bumpers, or a lounging platform later? Just slide it onto the track — no drilling or patching holes.

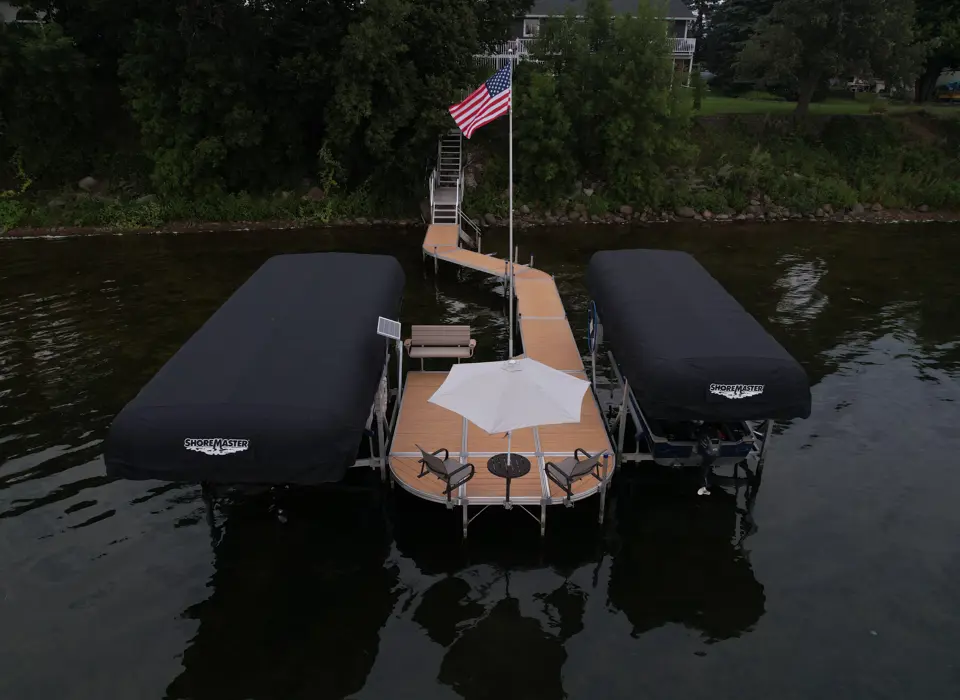

Choose from nine premium, low-maintenance decking styles, including painted aluminum, woodgrain aluminum, flow-through poly, and ShoreMaster’s exclusive Vertex™. Each style is designed to complement your shoreline aesthetic while delivering traction, durability, and easy ownership.
Our tool-free InfinityTrack system makes it easier than ever to add furniture, steps, ladders, bumpers, cleats, lights, fishing rod holders, and more. No drilling. No hassle. Just clamp and go.

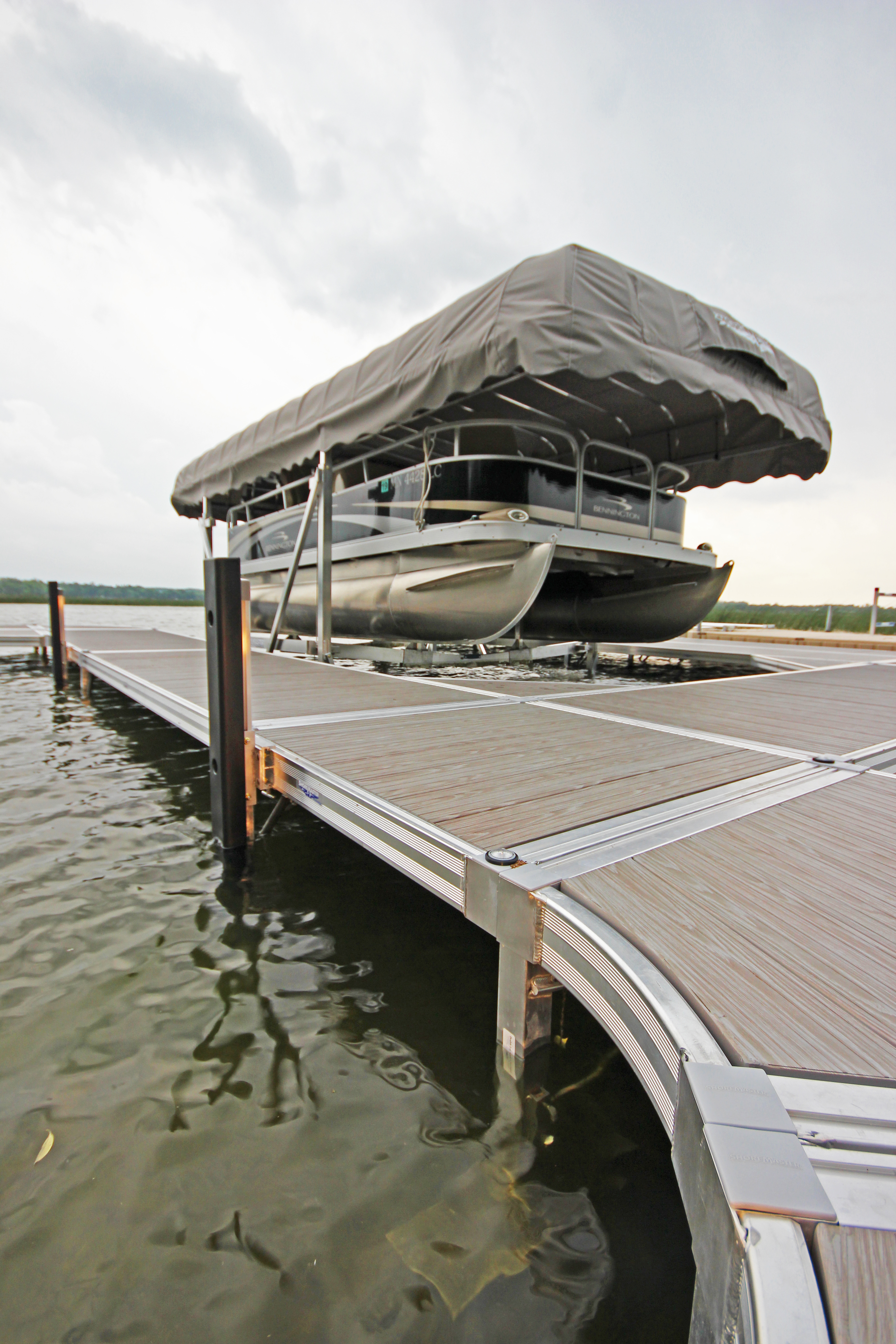

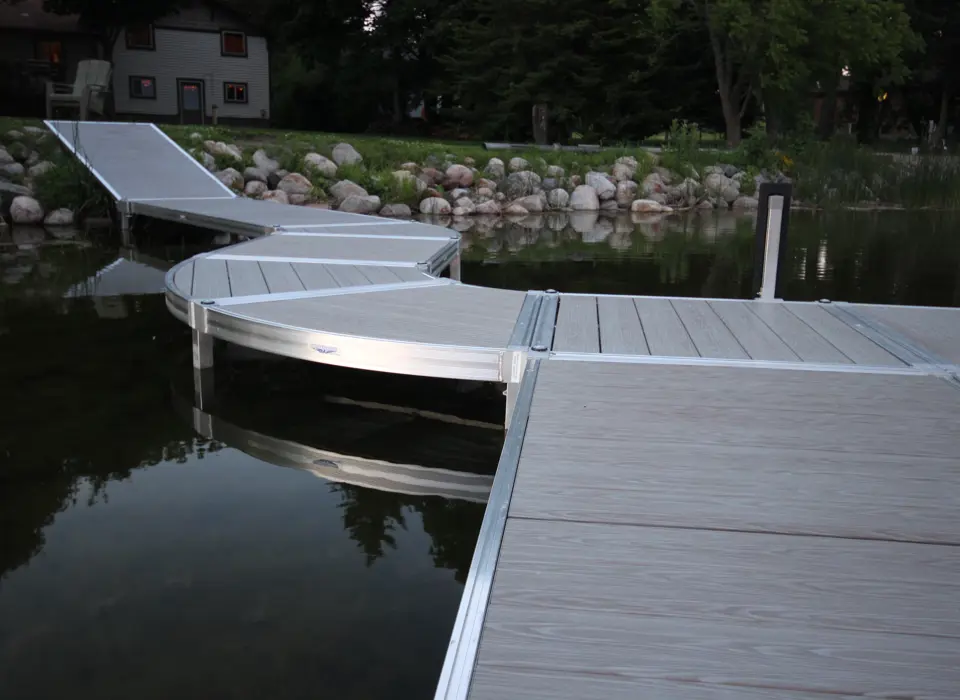

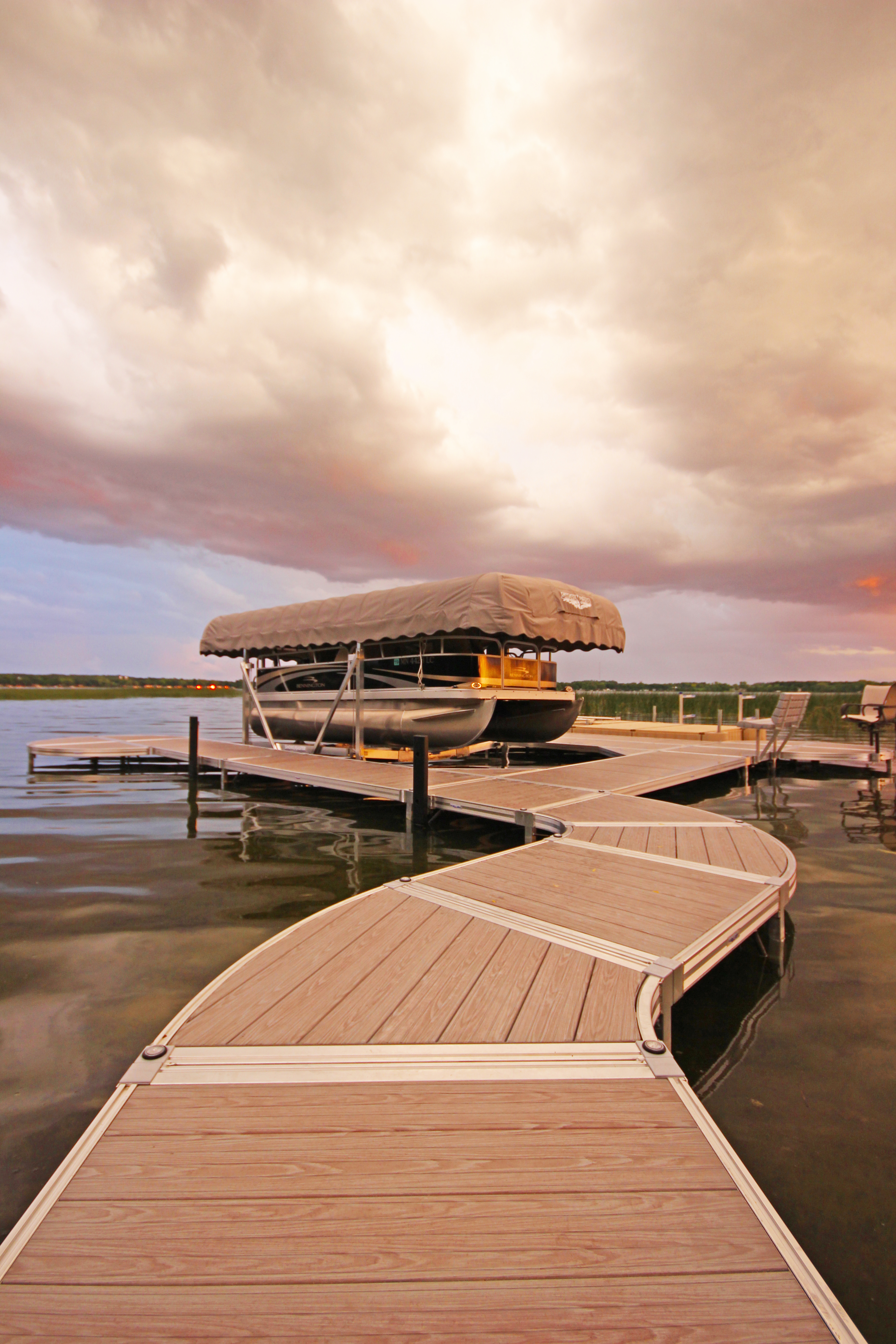

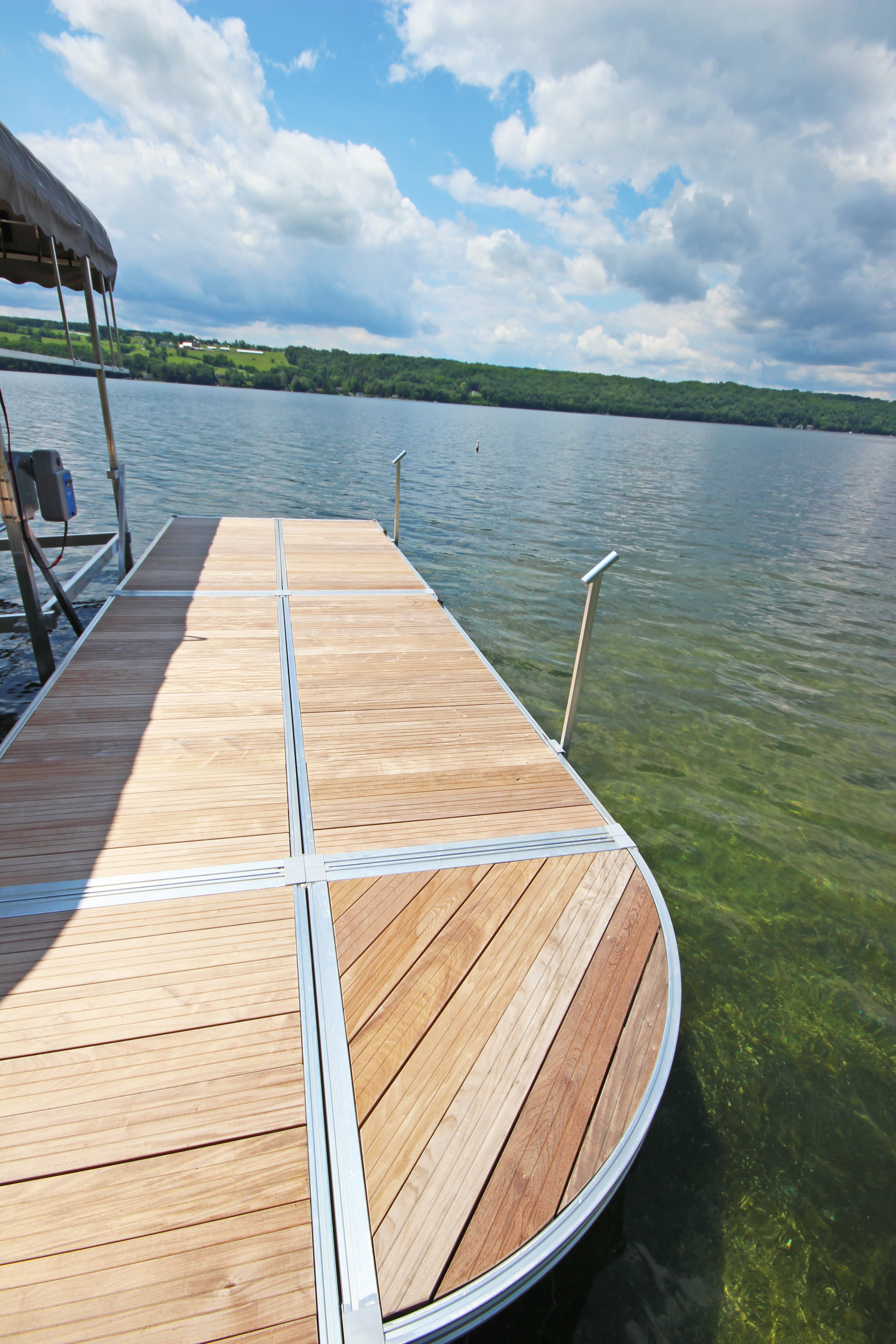

ShoreMaster’s exclusive 45° and 90° curved dock sections add smooth transitions, rounded platforms, and standout gathering spaces. Built with the same strength as our straight sections, they’re an easy way to personalize your dock and match your shoreline’s style.
Make your sectional dock system work for you with the ShoreMaster InfinityTrack accessory system. ShoreMaster offers the industry’s most dock accessories, all equipped with our hassle-free, tool-free InfinityTrack installation. It allows your Infinity Dock System to truly fit your unique needs.
Is the RS4 stable enough for larger gatherings or furniture?
Yes — the 4" welded frame and oversized foot pads keep the dock extremely secure, even with lounge furniture or groups gathered on wide platforms.
Can I mix the RS4 with floating or wheel-in sections?
Absolutely. Many homeowners start with an RS4 layout and later add a floating FTS9 off the end for deeper water, or wheel-in modules for easier installation on certain shores.
What’s the expected install time?
Two people can often assemble a basic 40’ RS4 dock with accessories in a few hours thanks to QuickConnect and drop-in decking. No heavy machinery needed.
How does it perform long-term?
UV-resistant decking, corrosion-proof marine aluminum, and stainless hardware mean minimal upkeep. Many RS4 docks installed over a decade ago still look nearly new.
